Special Features
Description
Dual-Centrifugal Fans
Move air quietly and efficiently — up to 400 cu. ft. of air per minute.

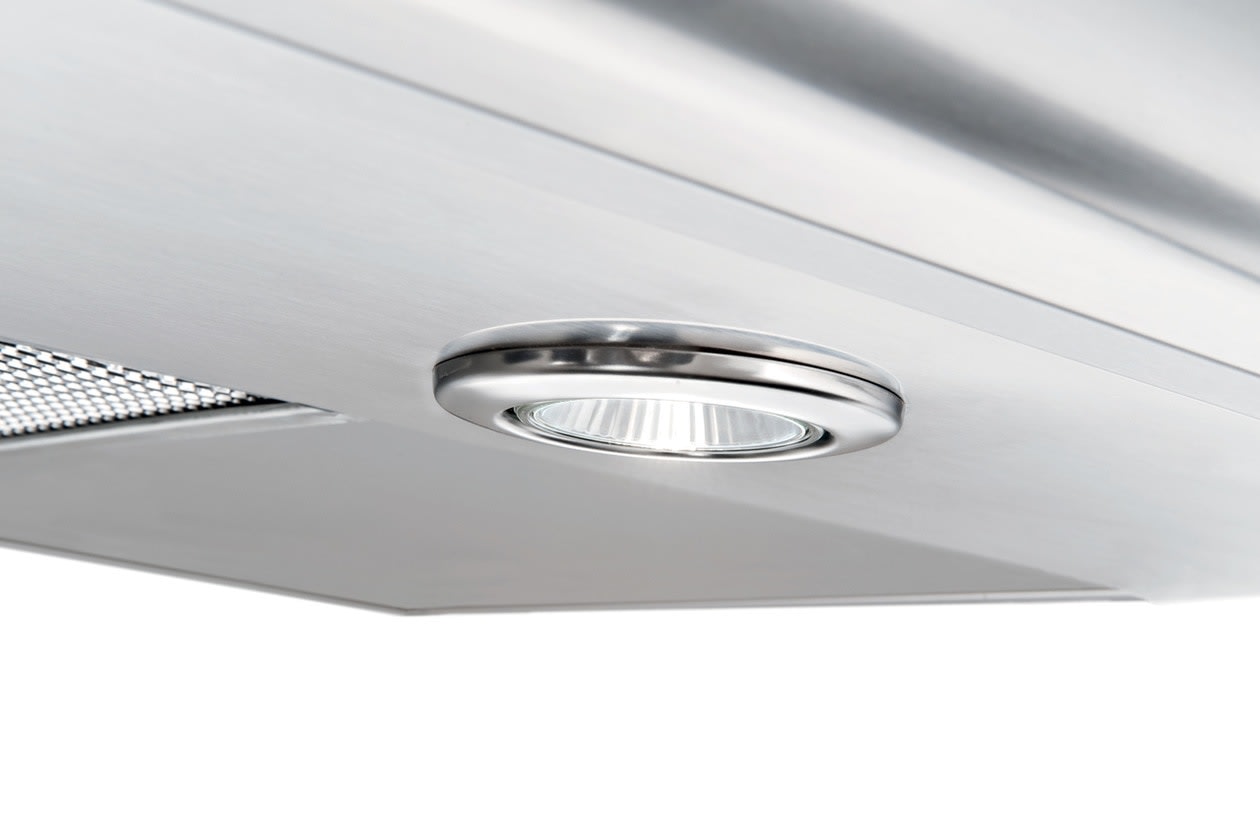

Halogen Lighting
For bright illumination of the cooktop surface.

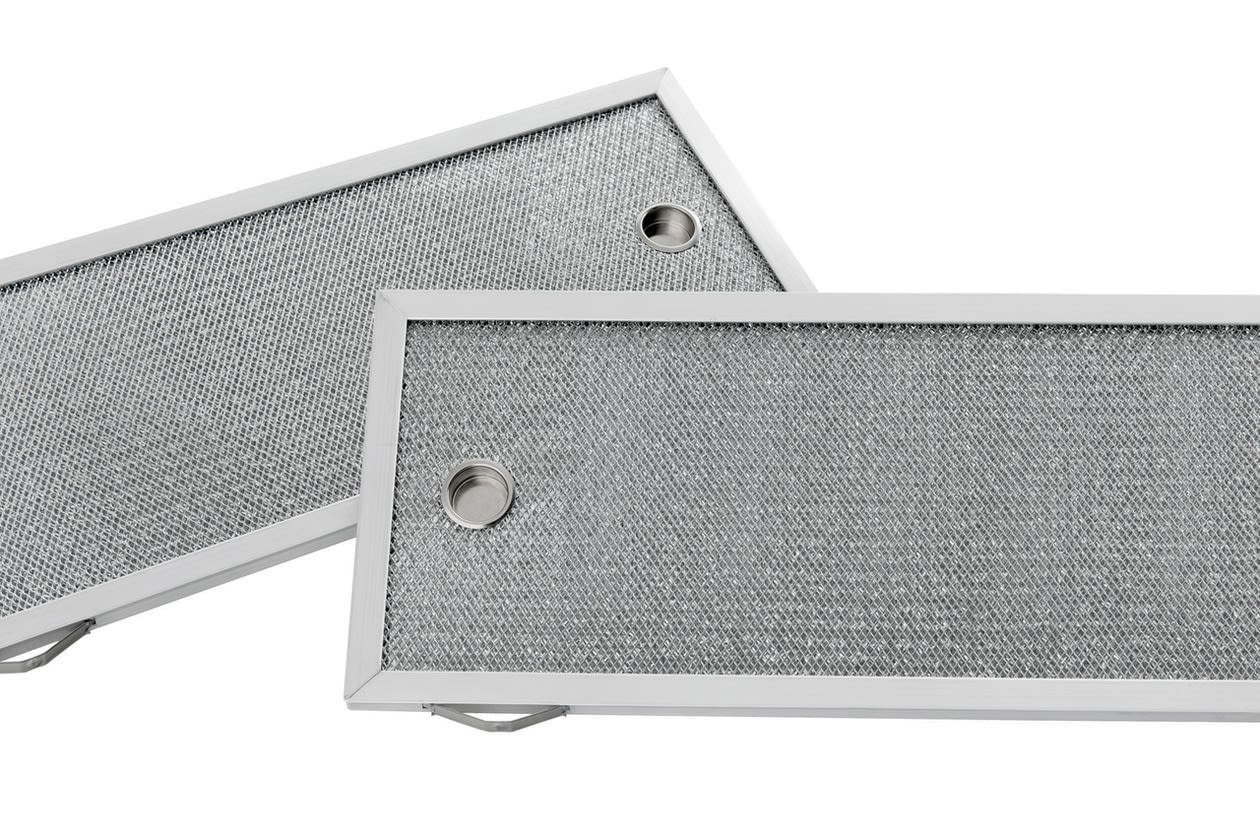

Washable Filters
Dishwasher safe for easy cleaning. The aluminum filter provides strength and durability not found in foam filters.
Specifications
Specification
| Certifications & Approvals | |
| Agency Approval | UL/cUL |
| UL/cUL Approval | Yes - cULus |
| Controls | |
| Control Buttons | 5 |
| Controls | Mechanical |
| Electronic Controls with LCD Display | No |
| Exterior Dimensions | |
| Depth | 19-11/16" |
| Height | 45" |
| Height (Min.) | 31-11/16" |
| Width | 35-3/8" |
| Electrical Specifications | |
| Amps @ 120 Volts | 4 |
| Circuit Amps | 15 |
| Voltage Rating | 120V 60Hz |
| Watts @ 120 Volts | 520 |
| General Specifications | |
| Filter Type | Dishwasher-Safe |
| PROP 65 Label | Yes |
| Vent & Light System | |
| Blower Type | Centrifugal |
| Duct Diameter | 6" |
| Ducted / Ductless Vent Installation | Convertible - outside or recirculated inside |
| Exhaust Duct | Convertible |
| Exhaust Fan Capacity (CFM) | 400 |
| Exhaust Fan Speeds | 3 |
| Filters | 2 |
| Lights | 2 |
| Sones Rating | 3.63 to 7.94 (1 to 3 speeds) |
| Sound Level (dBA) | 58.6 to 69.9 (1 to 3 speeds) |
| Vent Style | Stainless Steel / Wall-Mounted |
| Work-Area Light | Halogen Lighting |
| Accessories | |
| Recirculation Kit for Wall-Mount Hoods | Stainless - Optional order item no. FHWRKT55LS |
| Wall-Mount Extended Kit | Stainless - Optional order item no. FHW10X55LS |
| Cut-Out Dimensions | |
| Cut-Out Height | 29" |
