Special Features
Description

One-Touch Self Clean
Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.

Quick Boil
Get meals on the table faster with our 3,000W element - water boils faster than the traditional setting.

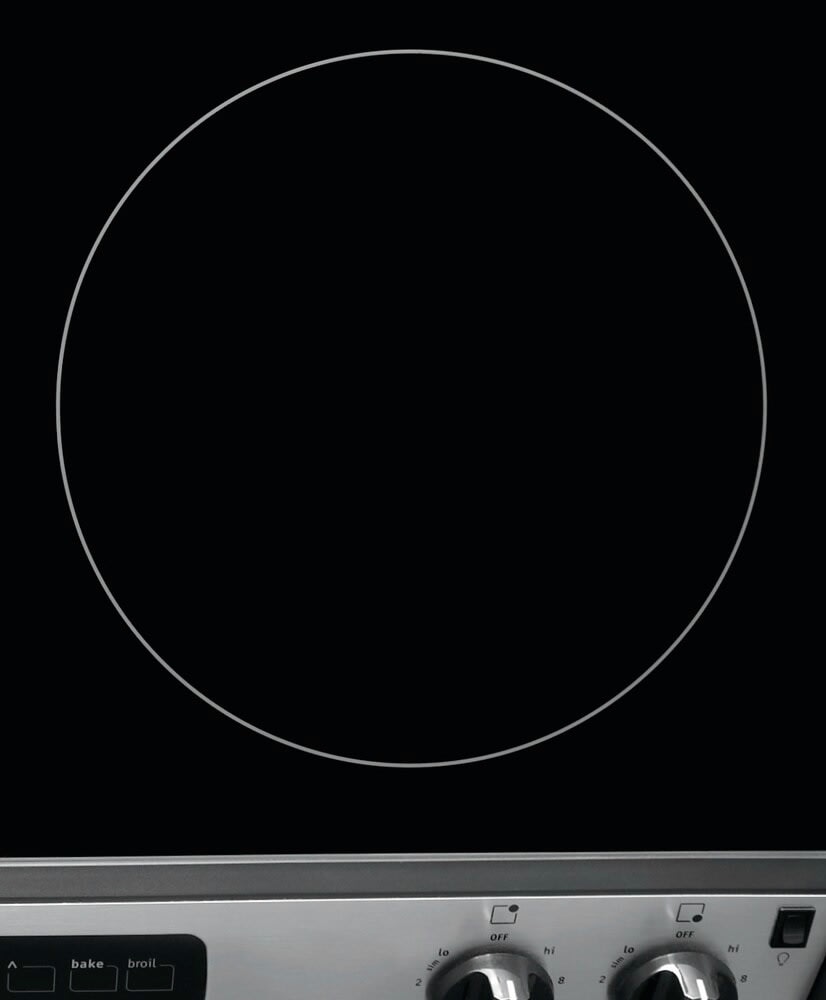

Extra-Large Element
With our extra-large 12" element, you have more flexibility to fit larger pots and p

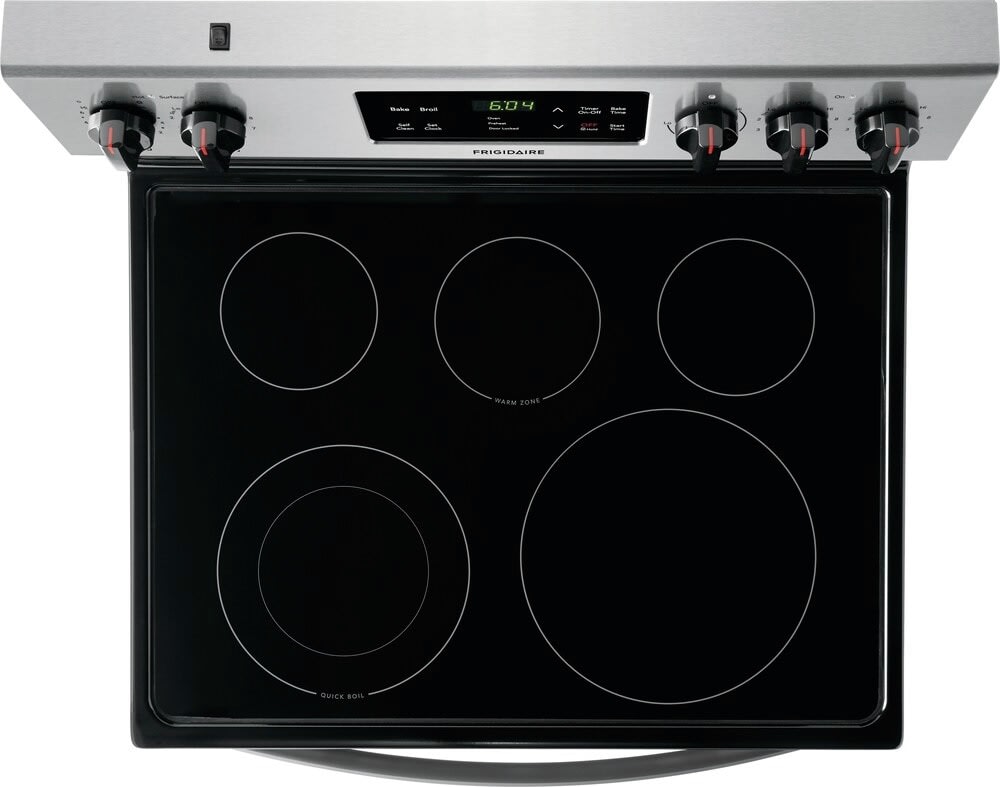

SpaceWise® Expandable Elements
Flexible elements expand to meet your cooking needs - big or small.

Large Capacity
Our large capacity oven gives you room to cook more dishes at once.

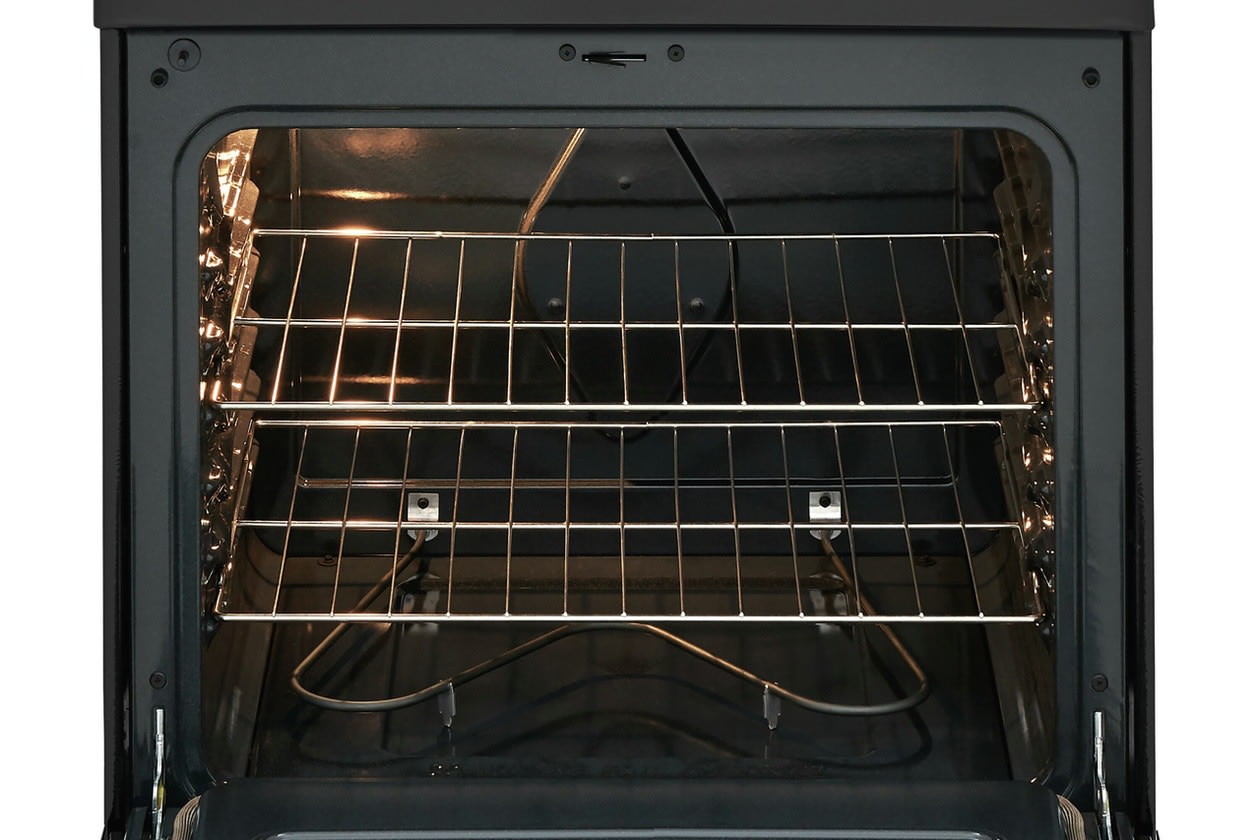

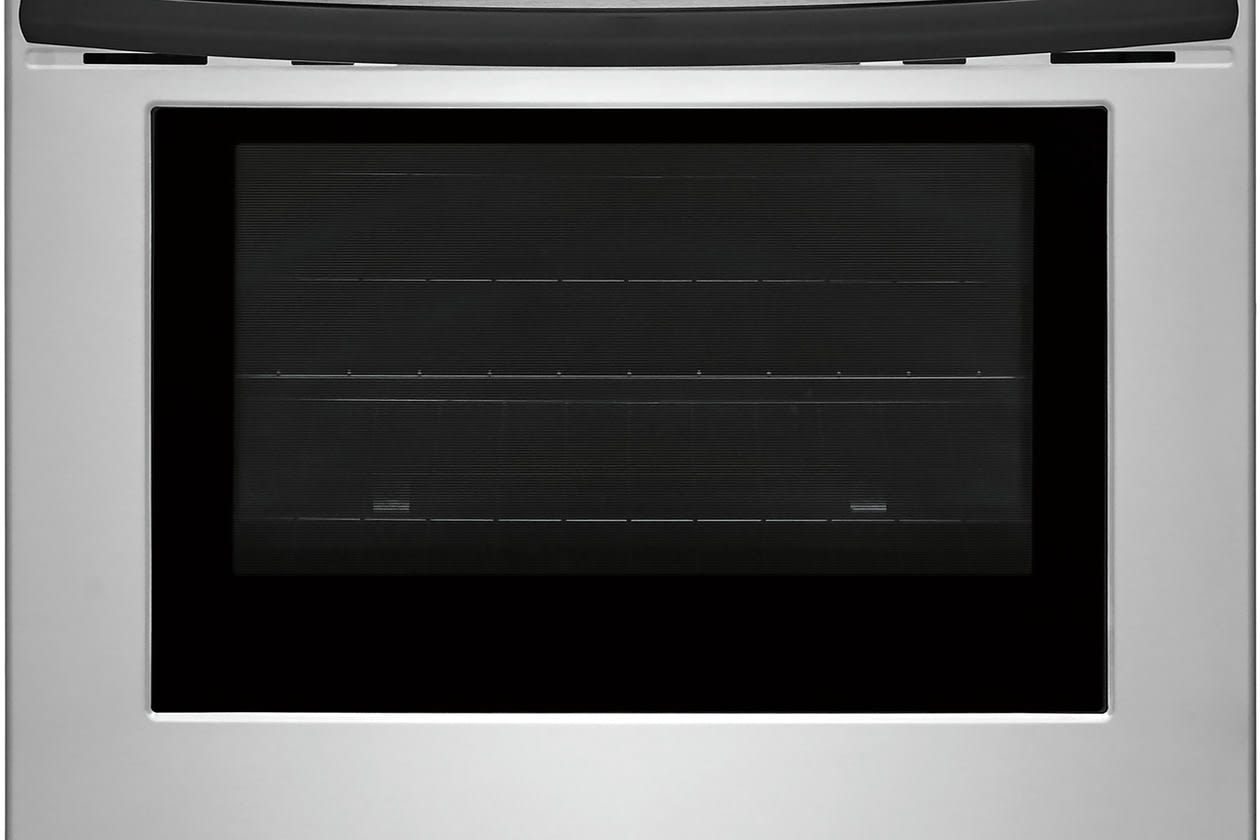

Color-Coordinated Oven Door with Large Window
Our large oven window makes it easier to check on the status of your dish without having to open the oven door.

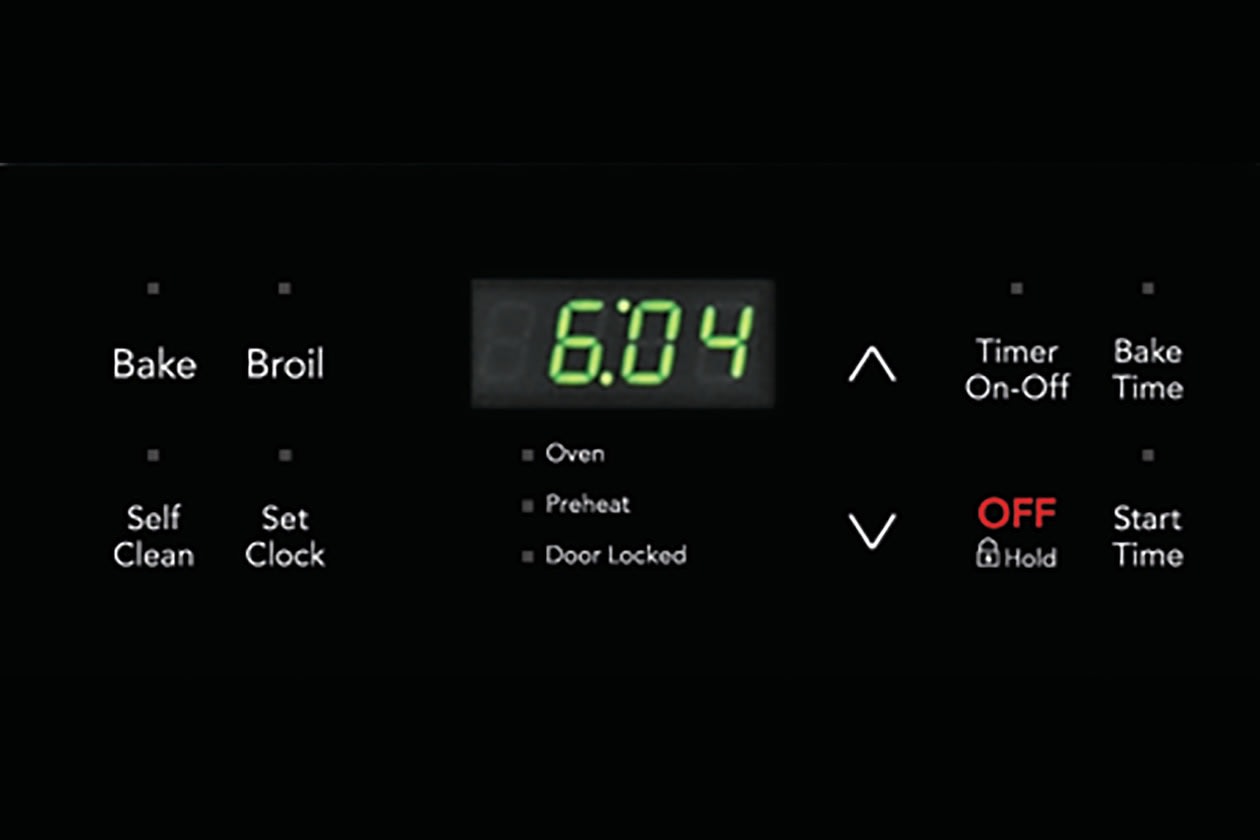

Electronic Kitchen Timer
Times up to 12 hours (control panel colors vary by model)

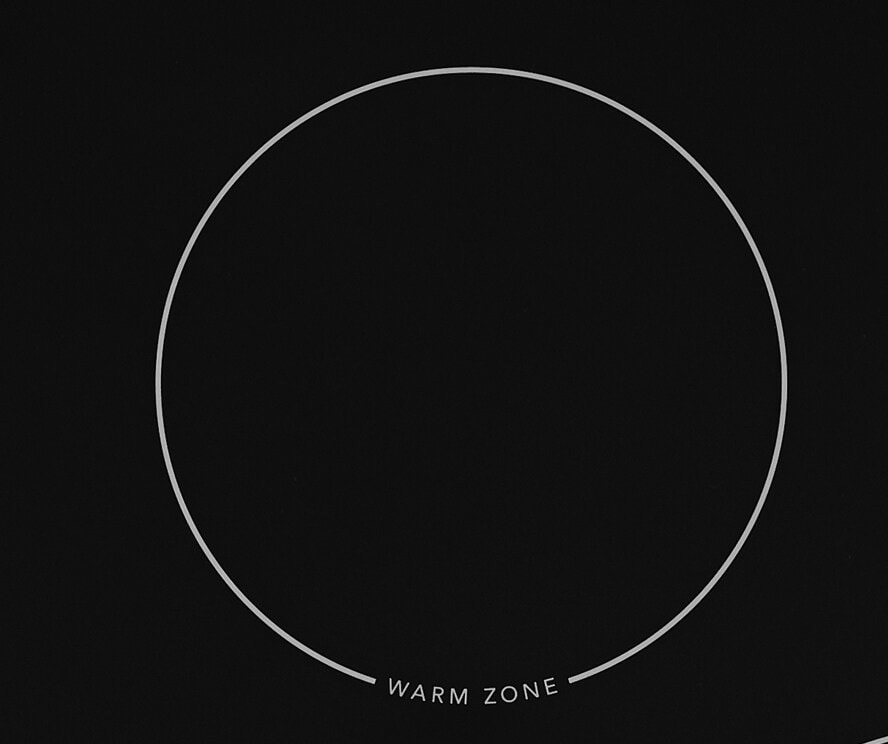

Keep Warm Zone
Keep food warm until everything — and everyone — is ready.

Store-More™ Storage Drawer
With the Store-More™ Storage Drawer, you will have extra space to store your cookware.
Specifications
Specification
Certifications & Approvals | |
ADA Compliant | No |
Agency Approval | UL |
Sabbath Mode | No |
Cooking Controls | |
Bake | Yes |
Broil | Broil Variable (400 - 500°F) |
Cancel | Yes |
Delay Bake | Yes |
Delay Clean | Yes |
Automatic Oven (Delay Cook & Off) | Yes |
Lockout | Yes |
Lower Drawer Controls | Storage |
Self-Clean | 2 3 Hours (Scroll thru) |
Probe | No |
Timed Bake | Yes |
Timed Shut-off | 12 hours |
Timer | Yes |
Control Lock | Yes |
Oven | |
Bake | 2600 Watts |
Baking System | Even Baking Technology |
Broil | 3000 Watts |
Broil System | Vari-Broil™ High/Low |
Hidden Bake Element | No |
Oven 1 Interior Depth | 19-1/8" |
Oven 1 Interior Height | 19-3/4" |
Oven 1 Interior Width | 24-3/8" |
Oven 1 Rack Configuration | 2 Standard |
Oven 1 Rack Positions | 6 positions |
Oven 1 Type | Main |
Oven 1 Window | Extra-Large Visualite® |
Oven Specifications | |
Oven 1 Cleaning System | Self-Clean |
Oven 1 Interior Lighting | 1 Incandescent |
Cooktop | |
Center Rear | Warming Zone - 100 Watts |
Cooking Surface | Upswept Black Smoothtop |
Element On Indicator Light | 1 Clear |
Hot-Surface Indicator Light | 1 Clear |
Knob Color | Color-Coordinated |
Knob Type | Plastic |
Left Front | 6" to 9" - 1400/3000 Watts |
Left Rear | 6" - 1200 Watts |
Right Front | 12" - 2700 Watts |
Right Rear | 6" - 1200 Watts |
Cooktop Surface Type | smooth surface |
Dimensions: Exterior | |
Height | 47-3/4" |
Width | 29-7/8" |
Depth | 28-13/32" |
Drawer | |
Drawer Functionality | Storage |
Handle | Stainless Steel |
Exterior Specifications | |
Control Panel Finish | Stainless Steel |
Door Finish | Glass with Stainless Steel |
Handle Color | Stainless Steel |
Exterior | |
Cooktop Finish | Color-Coordinated Porcelain |
Drawer Finish | Color-coordinated metal |
Exterior Finish | Painted |
General Specifications | |
Adjustable Leveling Legs | 4 Adjustable |
Product Weight (lbs) | 170 |
Electrical Specifications | |
Connected Load (kW Rating) @ 120V | 11.5 / 8.5 |
Minimum Circuit Required (Amps) | 40A |
Power Supply Connection Location | Rear Centerline Lower |
Voltage Rating | 240V / 208V 60Hz |
Capacities | |
Total Capacity | 5.3 |
